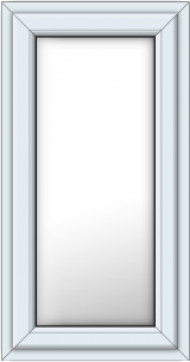

Casement Window

Viewed from outside

Available in 10 Working Days
may vary due to profile stock


Location:
Width:
Height:
Colour:
Handle Option:
Decoration:
Triple Glazing Trickle Vents Child Restrictors
Cill Option:
Dummy Sash Fire Escape Hinges Chamfered Frame & Bead
Left Right Top Bottom
None
15mm
25mm
50mm
Squares Wide Overall Squares High Overall
Toughened Laminated Obscure Spacer Bar: Pattern:


Advanced Details:

150mm External Cill / No Add Ons

Glazing:

28mm Clear A-Rated Glass Argon Gas Filled with Grey Warm Edge Spacer

Features

DOUBLE GLAZED BEVELLED
With a clean crisp angle, Chamfered windows are perfect for those wanting a more modern & contemporary look. Chamfered windows can either be specifi¬ed with a matching bead, or optionally Ogee bead can be chosen for a soft visual look.

DOUBLE GLAZED OGEE
The Decorative option offers an elegant sculptured look that replicates the appearance of traditional bead detailing on wooden windows - with Ogee beads used internally to compliment.

TRIPLE-GLAZING
Using a dedicated bead, our windows can incorporate a 40mm Triple-Glazed Unit. The performance of the unit can be increased by specifying a Low-Iron Outer Pane - please be aware that certain size sashes may not be permitted due to weight limiting factors. All side hung openers are fi¬tted with Mega Egress Hinges.

FOIL OPTIONS
Casement windows are available in a vast range of colours and finishes to compliment any home. Window frames can be dual coloured to suit both the interior and exterior of your property. Available in six standard colours the windows are foiled on both sides or one side with a white interior, our woodgrain finishes are designed to mimic the grained texture and appearance of traditional timber. Available in Whitegrain, Rosewood, Irish Oak, Golden Oak, Anthracite Grey and Black.




Design

Windows are the showcase feature of your home. They determine the character and appearance of your property, whether it’s a chic apartment, a traditional Victorian terrace or a stylish new-build house. Windows frame your view of the world from within and define the appearance of your home from the outside.

It’s essential to choose windows that complement the style of your home, provide long-life protection against the elements and enhance the security of your property. With our versatile PVC-U windows, you can rest assured that you will find an attractive, secure, energy-efficient style to suit your home.

The contemporary styling of our PVC-U windows includes a slimmer frame, giving a sleek, unobtrusive appearance and maximising the area of glass in your windows. That means more natural light in your home and a clearer view of the outdoors for you.

Our windows are available with two distinctive styles of frame and beading. The chamfered option is a contemporary, straight-edged style, while ovolo sculptured beading gives a more traditional decorative finish to your window.

Our standard frame is Ovolo as it gives the appearance of a slimmer frame and has a pleasant decorative finish. The chamfered frame can be selected in advanced view if preferred.

Tech Spec

Frame

Profile Legend 70
Material Virgin PVC-U
Thickness 70mm
Reinforcing Structural Thermal Inserts
Beading Internal Ogee Bead
Joints Welded
Weatherseals Co-Extruded Gasket
Energy Rating A

Glass

Manufacturer Saint Gobain
Product Planitherm Total Plus
Thickness 28mm
Filling Argon Glass
Spacer Bar Warm Edge Swiss
U-Value 1.2 W/m2K
Type Low Emissivity
Energy Rating A

Hardware

Lock Brand Yale
Lock Type Shootbolt & Opposing Cams
Hinges Egress Side Hung / Friction Top Hung
Hinge Finish Stainless Steel
Handles Yale Key Locking Cranked
